Collections
Item: Vinyl Wall Covering
Collection: ESD
Format: roll
Thickness: 2mm, 3mm
Size: 2*20m(2mm thick)
Weight: 2850g/m²(2mm thick)

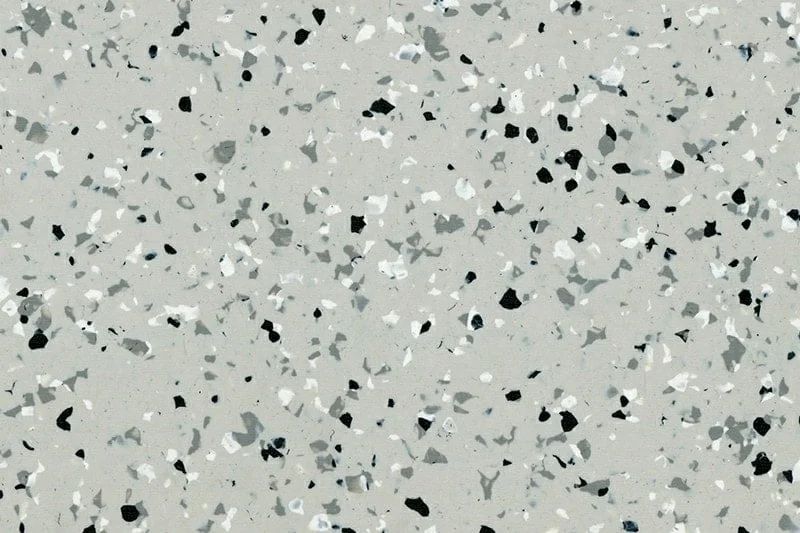

ESD-5501
Item: Vinyl Wall Covering
Collection: ESD
Format: roll
Thickness: 2mm, 3mm
Size: 2*20m(2mm thick)
Weight: 2850g/m²(2mm thick)

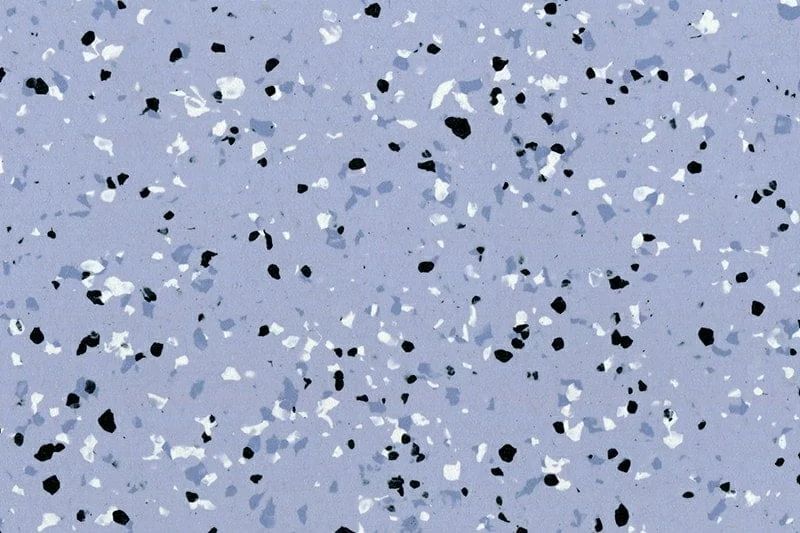

ESD-5502
Item: Vinyl Wall Covering
Collection: ESD
Format: roll
Thickness: 2mm, 3mm
Size: 2*20m(2mm thick)
Weight: 2850g/m²(2mm thick)

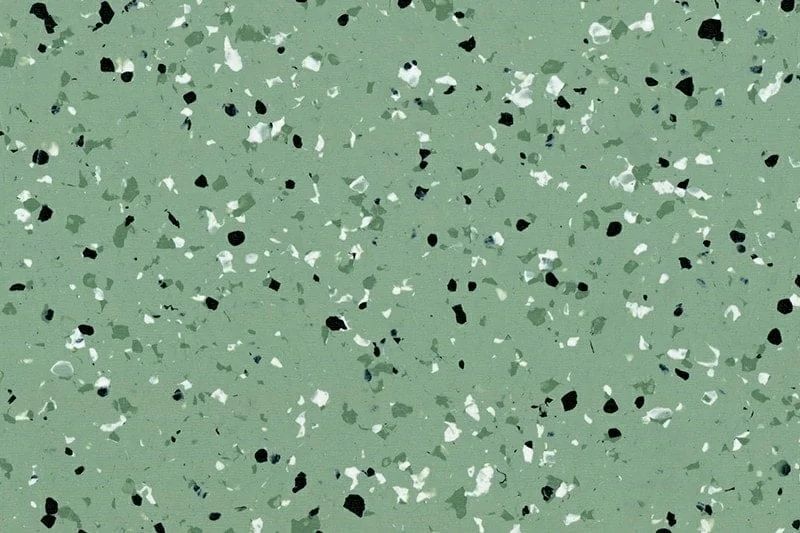

ESD-5503
Item: Vinyl Wall Covering
Collection: ESD
Format: roll
Thickness: 2mm, 3mm
Size: 2*20m(2mm thick)
Weight: 2850g/m²(2mm thick)

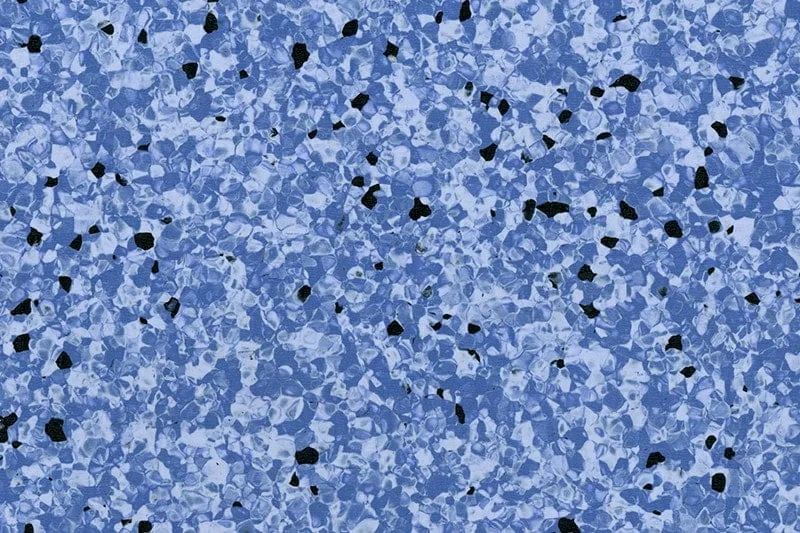

ESD-5505
Item: Vinyl Wall Covering
Collection: ESD
Format: roll
Thickness: 2mm, 3mm
Size: 2*20m(2mm thick)
Weight: 2850g/m²(2mm thick)

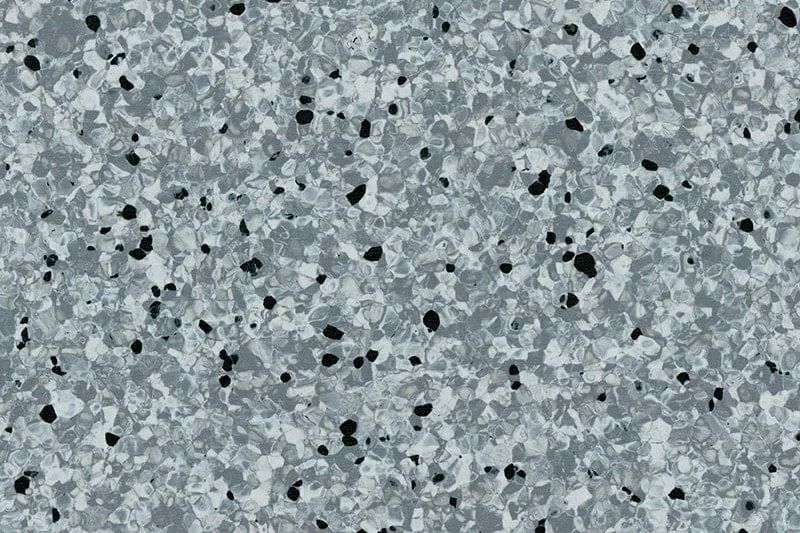

ESD-5506
Item: Vinyl Wall Covering
Collection: ESD
Format: roll
Thickness: 2mm, 3mm
Size: 2*20m(2mm thick)
Weight: 2850g/m²(2mm thick)

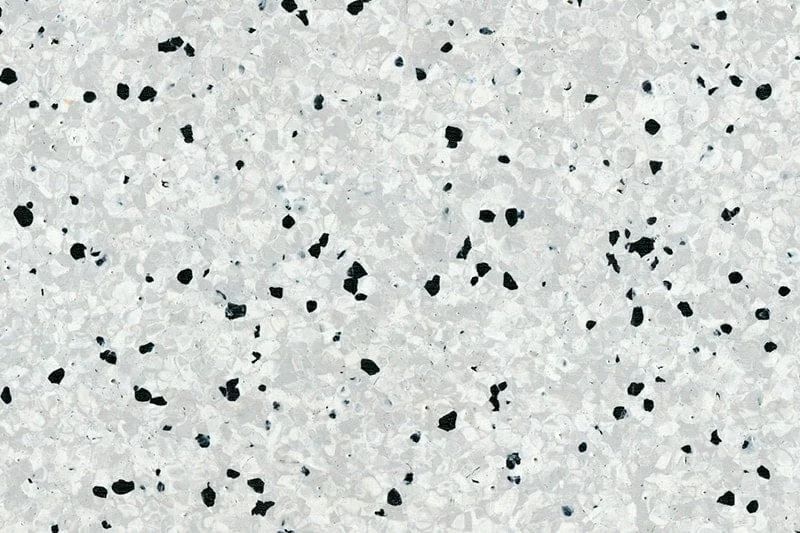

ESD-5507
Item: Vinyl Wall Covering
Collection: ESD
Format: roll
Thickness: 2mm, 3mm
Size: 2*20m(2mm thick)
Weight: 2850g/m²(2mm thick)
ESD-5508
Item: Vinyl Wall Covering
Collection: ESD
Format: roll
Thickness: 2mm, 3mm
Size: 2*20m(2mm thick)
Weight: 2850g/m²(2mm thick)
ESD-5509
Item: Vinyl Wall Covering
Collection: ESD
Format: roll
Thickness: 2mm, 3mm
Size: 2*20m(2mm thick)
Weight: 2850g/m²(2mm thick)
ESD-5510
Item: Vinyl Wall Covering
Collection: ESD
Format: roll
Thickness: 2mm, 3mm
Size: 2*20m(2mm thick)
Weight: 2850g/m²(2mm thick)
ESD-5511
Item: Vinyl Wall Covering
Collection: ESD
Format: roll
Thickness: 2mm, 3mm
Size: 2*20m(2mm thick)
Weight: 2850g/m²(2mm thick)
ESD-5512
Item: Vinyl Wall Covering
Collection: ESD
Format: roll
Thickness: 2mm, 3mm
Size: 2*20m(2mm thick)
Weight: 2850g/m²(2mm thick)
ESD-5513
Item: Vinyl Wall Covering
Collection: ESD
Format: roll
Thickness: 2mm, 3mm
Size: 2*20m(2mm thick)
Weight: 2850g/m²(2mm thick)
ESD-5515
Item: Vinyl Wall Covering
Collection: ESD
Format: roll
Thickness: 2mm, 3mm
Size: 2*20m(2mm thick)
Weight: 2850g/m²(2mm thick)
ESD-5516
Item: Vinyl Wall Covering
Collection: ESD
Format: roll
Thickness: 2mm, 3mm
Size: 2*20m(2mm thick)
Weight: 2850g/m²(2mm thick)
ESD-5517
Item: Vinyl Wall Covering
Collection: ESD
Format: roll
Thickness: 2mm, 3mm
Size: 2*20m(2mm thick)
Weight: 2850g/m²(2mm thick)
ESD-5518
Item: Vinyl Wall Covering
Collection: ESD
Format: roll
Thickness: 2mm, 3mm
Size: 2*20m(2mm thick)
Weight: 2850g/m²(2mm thick)
ESD-5519
Item: Vinyl Wall Covering
Collection: ESD
Format: roll
Thickness: 2mm, 3mm
Size: 2*20m(2mm thick)
Weight: 2850g/m²(2mm thick)
ESD-5520
Item: Vinyl Wall Covering
Collection: ESD
Format: roll
Thickness: 2mm, 3mm
Size: 2*20m(2mm thick)
Weight: 2850g/m²(2mm thick)
ESD-5521
Item: Vinyl Wall Covering
Collection: ESD
Format: roll
Thickness: 2mm, 3mm
Size: 2*20m(2mm thick)
Weight: 2850g/m²(2mm thick)
ESD-5522
CONDUTIVE FLOORING
Product Introduction
Condutive Flooring
Condutive Flooring has permanent anti-static function because it uses conductive statc network formed at the interface of plastic particles.
•
Envionment friendly
•
Waterproof , Anti-slip , Fire retardant
•
Acoustic
•
Easy-care
•
Conductive static electricity dissipates
Condutive Flooring
In today’s technological environment, static electricity is no longer just a simple and annoying shock wave. Static electricity not only damages or degrades the sensitivity of electronic components,but also ignites flammable gases, causing involuntary human movement or device failure.Cause heavy economic losses.So how to eliminate static electricity has become an urgent problem to be solved,JINYIYUAN anti-static floor is the optimal solution to the static electricity problem.
Precautions for Use
•
Because JINYIYUAN flooring is unpermeable, the surface dirty is easy to clean.
•
Avoid sharp scratches on the floor by hard object, and maintain a smooth surface.
•
Clearing the floor by neutral detergent, dry after washing, then coated with anti-static wax.
•
Serious dirty or spots can be used to clean the floor cleaning machine.
Installation
JINYIYUAN ESD Sheet Vinyl Flooring should be installed on sub floors that are leveled,smooth and free of cracks.Residual humidity should be under 2.5 % tested with the CM Dumb test. Tiles,adhesive and installation site should reach a temperature of at least 18℃ at least 24 hours before installation.and paste the tiles with qualified conductive glue below 10 Ω For further details on installation methods.please ask us.
CONDUTIVE FLOORING
Product Specifications
| Item | Standard | Index |
| Thickness | EN428 | 2.0 |
| Size | EN426 | 2mx20m |
| Electric properties | SJ/T11236-2001/EN1081 | Conductive 1.0x 104-1.0x106 Ω |
| Decay time | SJ/T10694-2006(V<100V) | AVERAGE 0.3S |
| Charge voltage | SJ/T10694-2006(Vk100V) | AVERAGE 70 |
| Fire Rating | DIN 4120 | B1 |
| Combustion properties | SJ/T11236-2001(<10S，Reach toFV-0 Class) | AVERAGE 0.35s| FV-0 |
| Smoke density | ASTME-662 | <450 |
| Amount of anti-wear | SJ/T11236-2001(≤0.020g/cm) | AVERAGE 0.014 |
| Anti-bacterial | DIN EN ISO 846-A/C | No bacterial growth |
| Wheel pressure | EN425 | No infuence |
| Toxic testing | GB18586-2001 | Suitable |
| Smoke toxicity | GB8024-2006 | ZA3 CLASS |
| Residual stability | EN433/SJ/T11236-2001 | <0.1mm/≤0.15mm |
| Dimensional stability | EN434 | ≤0.35% |
| Color fastness | EN ISO 105-B02 | degree 6 |
| Resistance to chemicals | DIN423、FN ISO 26987 | good |
| mpact sound absorption | VLI、ISO104、ISO717 | Approx 2dB |
| Slip resistance | DIN 51130/EN 13893 | R9/DS |
| Thermal Conductivity | EN12667 | 0.03w/(m.k) |
| Clean rooms | ASTM F51/68 | A Class ， non-shedding |
Applications
Condutive Flooring in sheet has the effect of consuming electric charge, and is widely used in the following scenarios:
•
Computer room
•
Advancedlaboratory
•
Factory workshop
•
Radio control room
•
Bank
•
Monitoring room
•
Control room
•
Other areas that require anti-static or conductive environment
